WPAN Wireless PC Connectivity

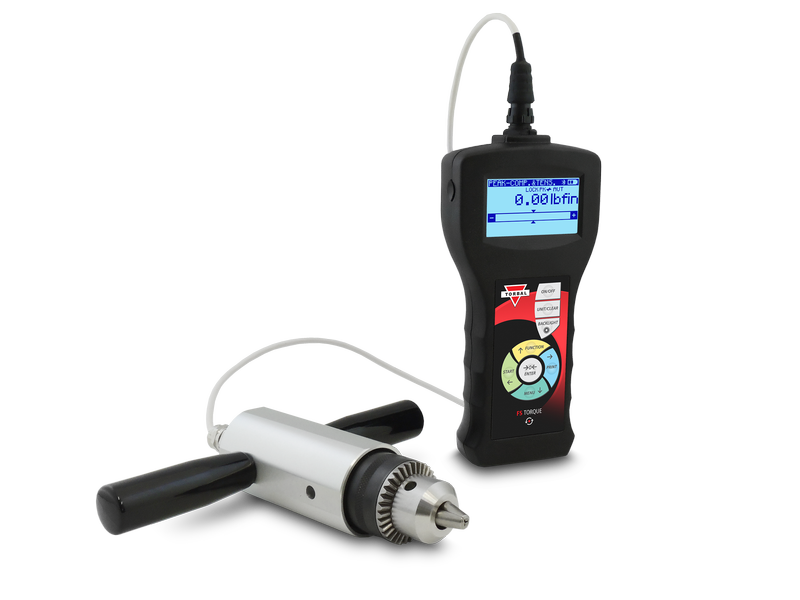

The FSB torque gauge is equipped with a built-in short distance wireless data transmitter which allows for a cable-free connection to your Windows PC, Laptop, or Tablet. Every FSB torque gauge is supplied with a USB dongle WPAN receiver which makes the connection setup quick and easy. The wireless module is also compatible with most WPAN devices found in Laptops and Tablets.

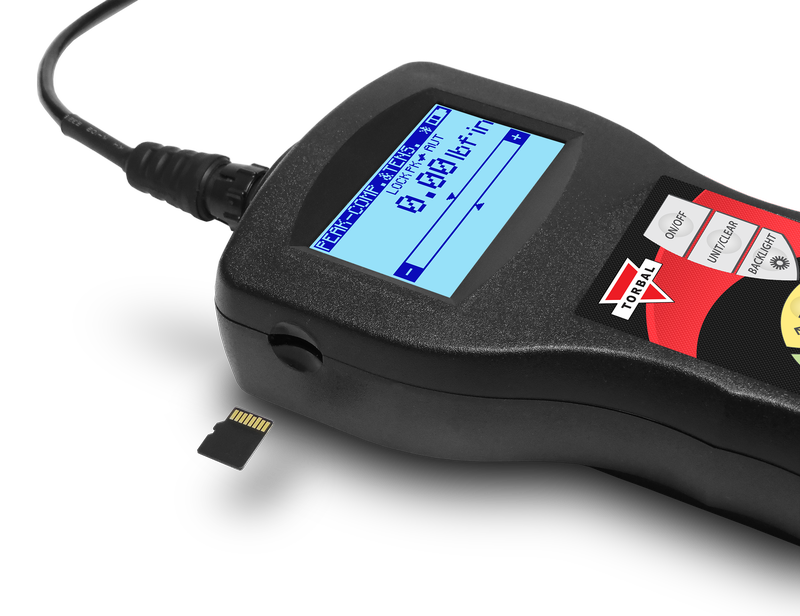

Removable MicroSD Memory
Every Torbal torque gauge is equipped with a MicroSD expansion slot which increases available memory via the insertion of a MicroSD card. All data results and measurements are saved directly to the SD card in a “.txt” format. Stored data can be seamlessly transferred to your PC by simply removing the SD card from the force gauge, and inserting it to your Desktop or Laptop.
USB, RS232, & I/O Interface
The torque gauge can be easily connected to a computer via the USB port, which is standard on all Torbal force and torque gauges. Data can be transferred directly to the PC, and measurements can be recorded and analyzed in real time with the TORBAL FM software.
Stats and Analytics
Each application mode of the torque gauge includes a statistical analysis of recorded samples and force peaks. Statistics include total number of samples, max, min, average, standard deviation and more. Calculations can be analyzed on the torque gauge and saved to a MicroSD card, or transferred to a computer for further interpretation.
Heavy Duty Design
Rugged die cast metal housing makes it ideal for use in demanding environments. The housing provides a stable platform and protects the torque gauge. Robust design guarantees durability and long operating life.
150% Overload Protected
Torbal FSA torque gauges ate overload protected up to 150% at full scale. Every torque gauge includes a used capacity indicator which shows the amount of the capacity used during force measurements. It allows the user to avoid exceeding the maximum capacity of the torque gauge. The indicator is particularly useful in when maxing out the gauge capacity with heavy loads.
Main keys and buttons of the torque gauge are logically arranged and can be easily operated. Adequate number of keys create a more intuitive keypad, and guarantee a long operating life of the unit.

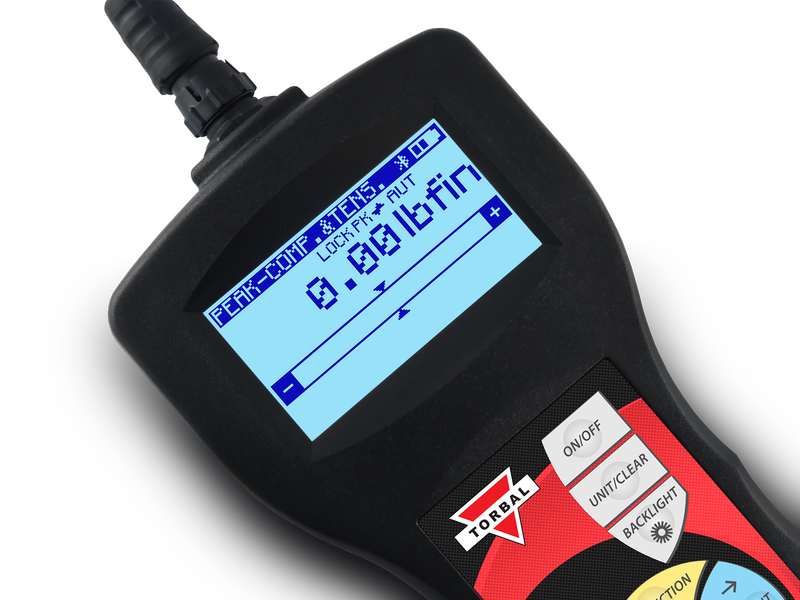

Onscreen Graph and Histogram
Peaks and samples are displayed on an X, Y graph or as a histogram. The graph displays recorded peaks and can be scrolled to view recorded measurements during the test. The histogram shows the number of samples taken at different intervals of torque measurements.
Analog Output and Input Modes
The threshold output mode enables the analog output port by sending voltage level signals which can be used for signaling or controlling external peripherals that can connect with the force gauge. The output mode can be used in combination with Programmable Pass / Fail Thresholds Monitoring. Input mode allows an external button or a pedal to be used as a trigger for starting force measurements and taking samples. OUTPUT Ampacity: I max=25mA / U nom=24V (open collector type, emitters connected– GND) | INPUT Voltage Range IN (+) / IN (-): U in = 12-18V / I in max=50Ma.
