AD Precision Scale
More Balance, Less Buck
Shop Now
Features
Equipped with all the essentials
Large LCD Display
Equipped with a large 7-segment LCD display which ensures excellent visibility of weighing results. The display features many indicators which make the scale intuitive and easy-to-use.
USB and RS232
A programmable RS232 and USB communication port allows transferring data to a printer or a PC. Under the control of TORBAL™ Communication Software, data may be exported to standard word processing and spreadsheet programs.
Accurate and Easy to use Leveling System
The die-cast metal base uses a tripod support system which consists of two adjustable legs and one fixed leg. Combined with an accurate bubble level indicator, the system ensures fast, accurate, and easy leveling.
Robust Die-cast Metal Housing
Robust die cast metal housing makes it ideal for applications in tough environments. This rugged design provides a stable weighing platform and guarantees long operating life of the scale.
Used Capacity Indicator
Equipped with a used-capacity-indicator which shows the amount of the scale's capacity used during weighing. It allows the user to avoid exceeding the maximum capacity of the scale. The indicator is particularly useful in functions such as "Totalizing" where large amounts of tares are likely to be taken.
Sealed Front Panel
All TORBAL digital scales have a sealed front panel which protects the keys and the LCD display from dust and accidental spills. With logically grouped keys, the panel is simple, concise, and intuitive.
Draft Ring
The draft ring is standard on all AD models with a resolution of 0.001g (AD60, AD120, AD220, AD320, AD520). Its unique design around the pan minimizes the need for a windscreen in environments with common air movements. The draft ring provides full access to the pan while maintaining stability during weighing.
GLP and Data Printing
This feature allows the user to print a record of a performed transaction. The printed record indicates GLP data which including the Model Number, Unit ID, User ID, and a Project Number. In addition to the weighing result the receipt also contains information associated with the function in use such as, average weight time, average piece weights, reference weights, and weight limits.
Modes
More than just weighing
Weighing
The scale's basic weighing function is fast, accurate and easy to use. Basic weighing operates with nine weighing units, and the function is equipped with all essential features such as the Initial Zero as well as the Automatic Zero Setting Mechanisms. The NET indicator lets the user identify that a Tare has been taken while the capacity indicator assists the user in performing weighing operations. Printed weighing results include GLP data as well as the date and time.
Parts Counting
The AD Series Parts Counting Mode provides the user with an easy to use, yet comprehensive, capability for counting parts based upon weight. The counting feature is designed in the form of a short wizard which leads the user step by step through the procedure. Repetitive counting using the same average piece weight is especially simple and fast. The user is offered a choice of sample sizes ranging from 1 to 100 when establishing a new average piece weight. The feature is very user-friendly with the counting process usually taking only a few seconds to complete.
Animal Weighing
Fast, flexible, and easy to use for weighing live animals or other dynamic loads. A choice of 3 different operating modes and 4 different weight integration periods ensures the user the best results in the least amount of time per measurement. Repetitive weighing is simple and fast, especially in the Automatic Mode where animal weighing is initialized automatically, and the scale performs an auto-tare as well as clears the result automatically between each weighing.
Check Weighing
Provides an easily programmed, fast, and flexible way to check-weigh items. The user has the option of using previously stored Upper and Lower limits or setting a new limit range. Repetitive Check Weighing using the same Limits requires no intervention, simply place the unknown on the pan and read the displayed result, which is expressed ad UNDER, OVER and ACCEPT.
Display Hold
This function is ideal for user's looking to lock weighing results on the display after weighing. The result remains locked on the display until it is cleared or removed from the pan. This function works in three operating modes "AUOTMATIC, SEMI-AUTOMATIC, AND MANUAL" which provide the user with great flexibility in using the function.
Percent Weighing
Percent Weighing Application provides the user an easy to use, flexible, and fast way to establish the relative weight of an unknown compared to that of a stored sample and expressed as a percentage. The user may opt for a stored sample weight or, with on screen guidance, establish a new sample weight. Repetitive Percent Weighing using the same Sample Weight requires no further intervention, simply place the unknown weight on the pan and its weight expressed as a percent of the Sample weight appears on the display.
Totalizing
A simply to use, fast and easy way to perform functions which require the summation of sequential weights, like compounding. The user may view a running sub-total at any point in the process, as well as, the grand total at the end of the weighing sequence. The weighing sequence is very rapid in the Automatic Mode as weighing results are automatically added to the grand total.

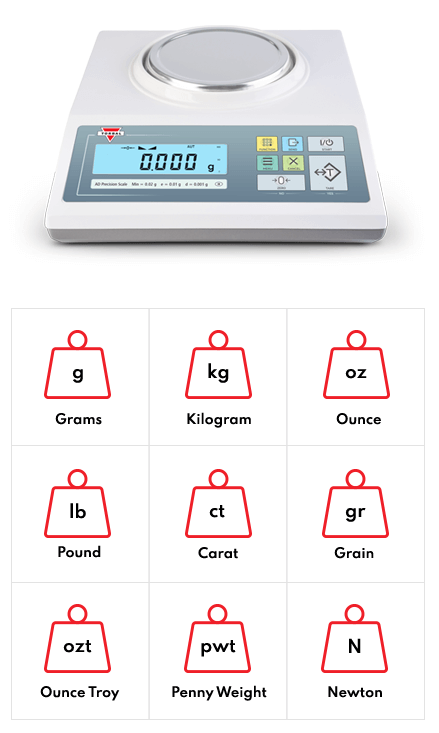

Units of Measurement
Grams (g)
Kilogram (kg)
Carat (ct)
Pound (lb)
Ounce (oz)
Ounce Troy (ozt)
Penny Weight (pwt)
Grain (gr)
Newton (N)
AUTO CONNECT:
The auto-detect and connect feature automatically recognizes and establishes a connection with your TORBAL scale or balance that is connected via USB or Ethernet. This feature eliminates the need for manual configuration, making the process faster and more efficient
DATA FEED:
The data feed function automatically sends data from the scale to your PC in real time. It eliminates the need for manual entry and allows for real-time monitoring and analysis. Data can be automatically sent at a set speed and desired format which includes the unit of measure, as well as the date and time. Additionally, the data can be easily exported to a .txt or .csv file and opened in third-party software.
DISPLAY VIEW:
Allows you to monitor the scale display in real-time on your PC. It enhances the visual representation of the data and assists in identifying patterns or trends. Easier control of incoming data with panel shortcuts to send data, tare, zero, etc.
TERMINAL:
The Terminal feature is ideal for debugging and troubleshooting serial communication between the scale and the PC. Incoming and outgoing data can be easily monitored for errors while sending communication commands to the scale. Received data can be formatted according to your standards based on interface, time & date, etc. Firmware updates can also be performed here if necessary.
TRANSFER:
Data transfer bridges communication from the scale with 3rd party software. Automatically transfer data to any text input field for an advanced data analysis. Personalize the speed and formatting of your data during transfer to specific text input fields. Set keyboard shortcuts or “hotkeys” for better control of your data collection.
