Digital torque gauges

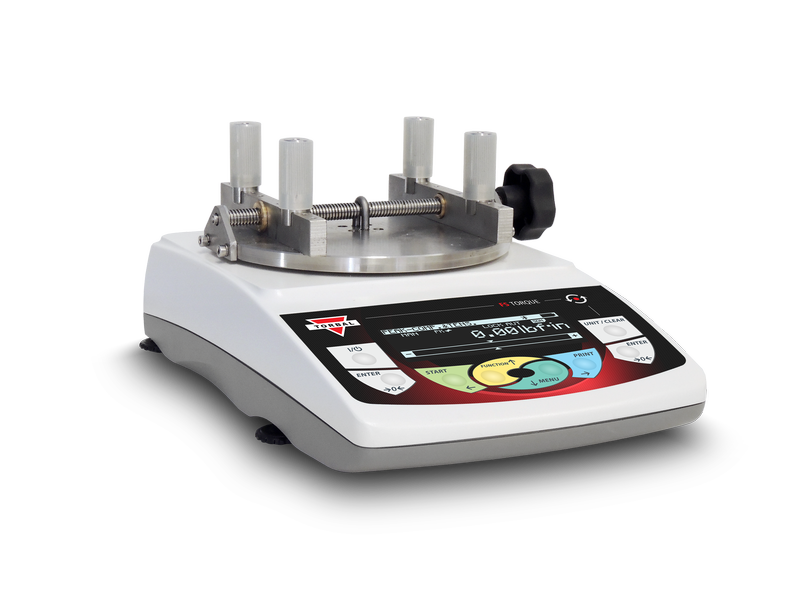

Cap Tester View series
Capacity:
7lbF.in (2Nm) with a resolution of 0.01lbF.in (0.001Nm) to:
100lbF.in (10Nm) with a resolution of 0.1lbF.in (0.01Nm)
Test any Container or Jar :
The FSA accepts virtually any container or jars ranging from 0.79” (20mm) to 7.09” (180mm) in diameter. Adjustable steael posts covered with non-slip rubber sleeves assure a firm grip of a wide range of container shapes and sizes.
Modes:
Peak Mode, Multi-Peak Mode, Fill Meter, Standard Mode, Pass/Fail, and Peak Sensitivity
Main Features:
Every model is equipped with a built-in wireless data transmitter, expandable microSD memory card, as well as a USB and an RS232 interface. The analog input-output port makes the FSA ideal for use with Pass / Fail signalization devices or other equipment.
Heavy Duty Design:
Rugged die cast metal housing makes it ideal for use in demanding environments. The housing provides a stable platform and protects the torque gauge. Robust design guarantees durability and long operating life.

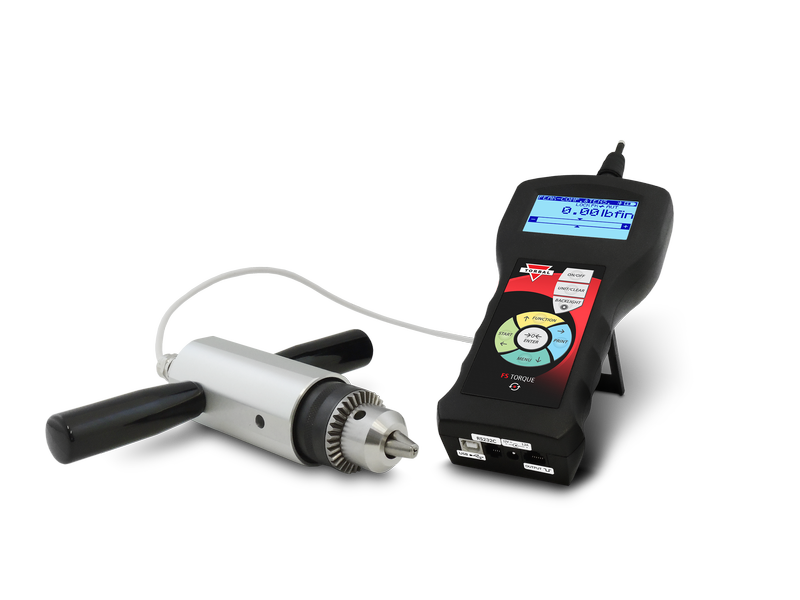

Chuck Clamp View series
Capacity:
17lbF.in (2Nm) with a resolution of 0.01lbF.in (0.001Nm) to:
100lbF.in (10Nm) with a resolution of 0.1lbF.in (0.01Nm)
Heavy duty External Remote Sensor :
Detachable loadcell handles provide ultimate comfort and stability while operating the torque gauge sensor in your hand. The FSB toque gauge is overload protected up to 150% full scales.
Modes:
Peak Mode, Multi-Peak Mode, Fill Meter, Standard Mode, Pass/Fail, and Peak Sensitivity
Main Features:
The FSB samples at a rate of 1000Hz and guarantees optimum precision and accuracy at all times. Measurements are automatically saved to the removable microSD memory card or can be easily sent via USB or the built-in wireless module to a laptop or a PC.
Accept virtually any bit, grip or attachment:
Heavy duty torque sensor makes the FSA ideal for virtually any clockwise and counter clockwise application. Precision chuck clamps accepts bit or attachment as small as 1/16”..

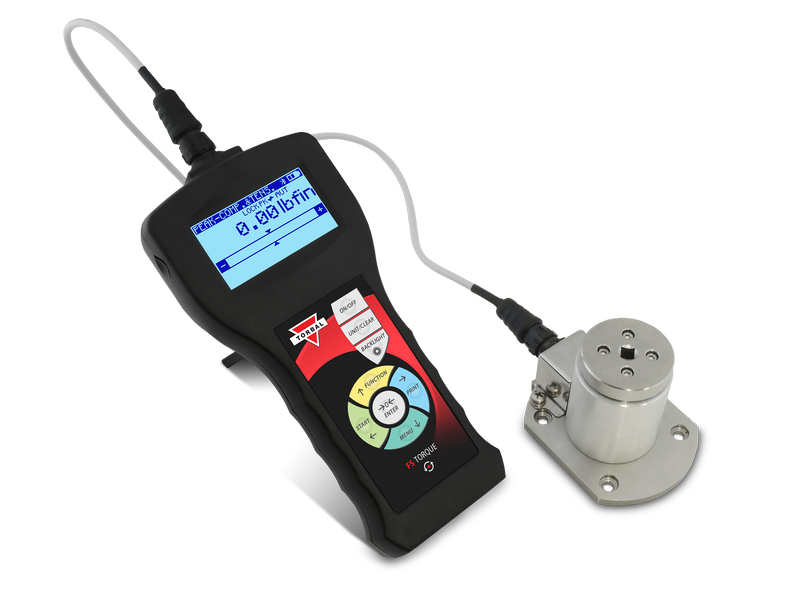

Tool & Wrench View series
Capacity:
17lbF.in (2Nm) with a resolution of 0.01lbF.in (0.001Nm) to:
100lbF.in (10Nm) with a resolution of 0.1lbF.in (0.01Nm)
Verify the setting of virtually any torque tool
Heavy duty rugged design makes the FSC torque gauge ideal for almost any fastener assembly application. Reliable design, ease of use, and adaptability to your existing workbench or tabletop improves productivity.
Modes:
Peak Mode, Multi-Peak Mode, Fill Meter, Standard Mode, Pass/Fail, and Peak Sensitivity
Main Features:
The FSC captures data at an ultra-fast 1000Hz and guarantees precision and accuracy at all times. Measurements are automatically saved to a removable microSD memory card or can be easily sent via USB or the built-in wireless module to a laptop or a PC.
The FSC accepts a wide variety of torque wrench sizes
The loadcell socket accepts any 1/4" drive wrench and 1/4" to 3/8” drive adapters. Easily adapt the torque sensor to your existing work bench.
-
FSC2
SKU: 301088
17lbf.in x 0.01lbf.in (2Nm x 0.001Nm) wrench and tool torque gaugeOur price: $999.00 -
FSC5
SKU: 301089
44lbf.in x 0.01lbf.in (5Nm x 0.001Nm) tool and wrench torque gaugeOur price: $1,099.00 -
FSC10
SKU: 301090
100lbf.in x 0.1lbf.in (10Nm x 0.01Nm) tool and wrench torque gaugeOur price: $1,149.00
