Moisture analyzers, balances, meters and testers

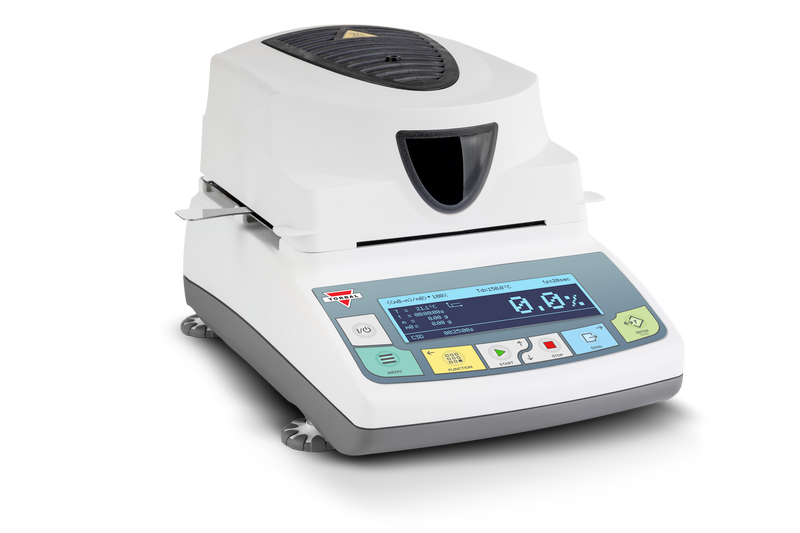

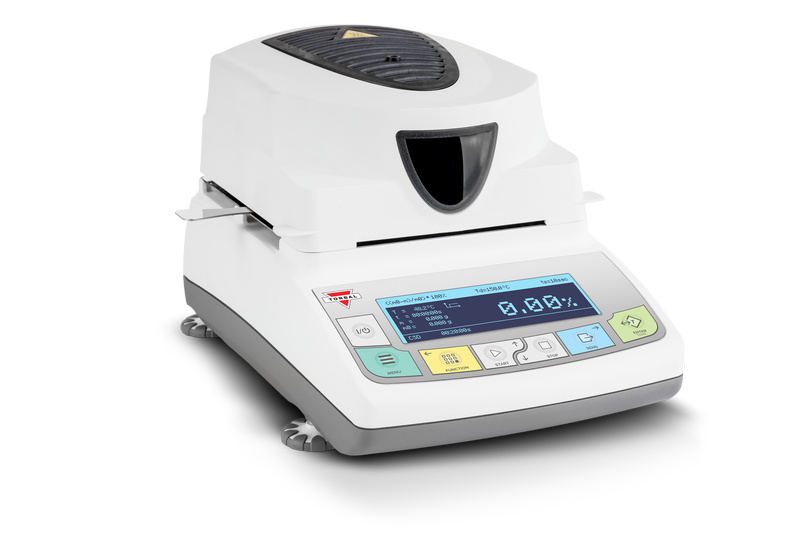

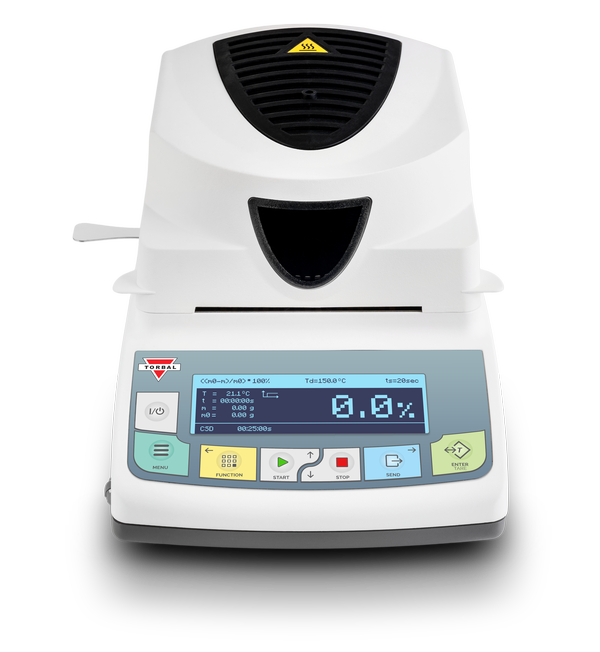

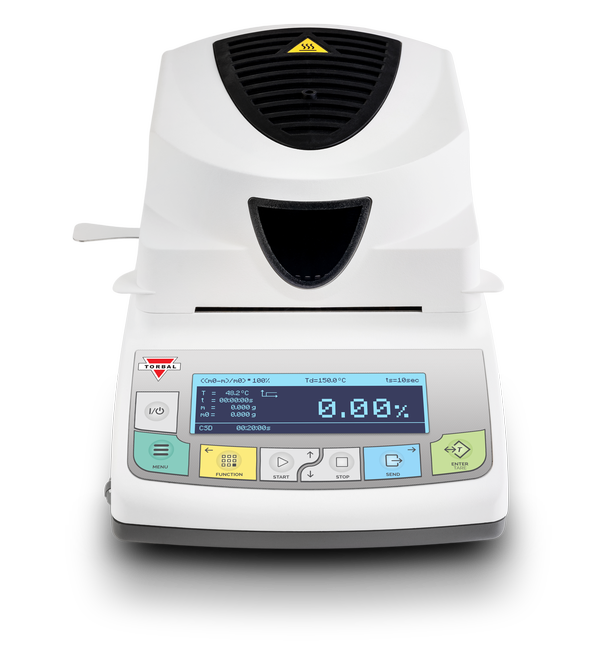

Precision View series
Capacity and Resolution:
0.1% [110g x 0.01g]
0.01% [60g x 0.001g to 120 x 0.001g]
Features:
Small Footprint (7.2” x 11.4” x 6”), Modern compact design, Temperature Calibration Option (Used with external Temperature Probe), Intuitive graphical LCD display with graph plotting, 20 Memory locations for custom drying parameters, 4 drying profiles (Standard, Slow, Step, and Fast), USB port, RS232 port, and PS2 external keyboard connection.
Description:
The Precision line of Moisture analyzers includes advanced models designed for applications that require high accuracy, as well as basic economically priced analyzers which are designed for simple and less demanding analyses. All precision analyzers are built with highest quality components that guarantee precise and accurate results at all times. The die-cast metal base and robust rugged housing guarantees long operating life.

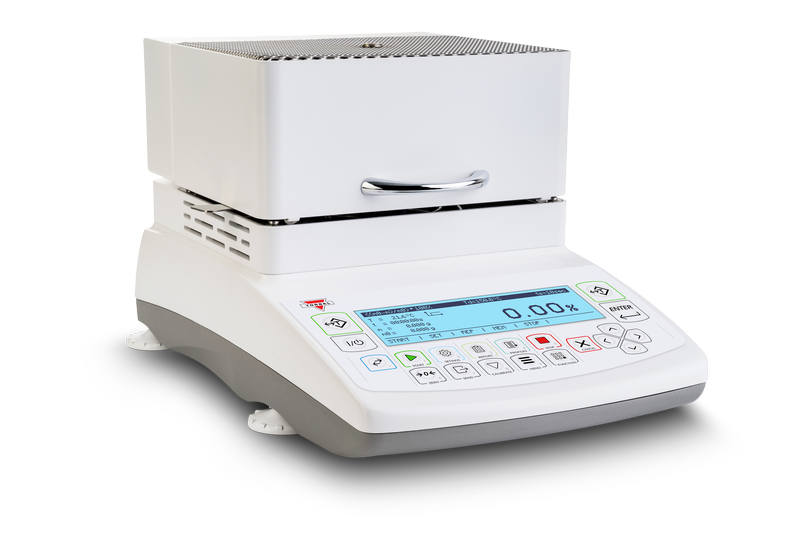

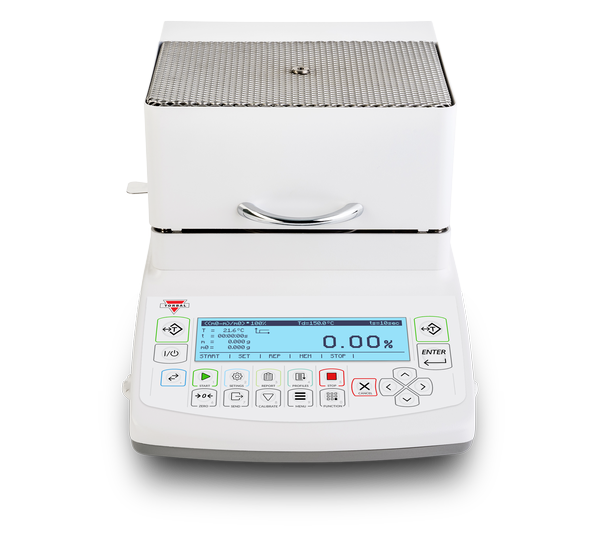

Professional View series
Capacity and Resolution:
0.01% [50g x 0.001g to 100 x 0.001g]
Features:
250W of power which allows for fast and accurate drying up to 250oC, Extremely Rugged and Robust design, Large Graphical LCD display with a 20key keypad, as well as dual Tare and Navigation keys, 4 drying profiles (Standard, Slow, Step, and Fast), USB port, RS232 port, and PS2 external keyboard connection, Temperature Calibration Option (Used with external Temperature Probe), and much more…
Description:
AGS PRO analyzers have been designed to handle the most demanding applications and usage. The AGS is built with Torbal’s electromagnetic force restoration load-cell which offers uncompromised accuracy of 0.01% (0.001g). The AGS is built with a complete die-cast metal housing making the unit very rugged, robust, and resistant to heavy usage in challenging environments.
-
AGS120 250C PRO
SKU: 16220
0.01% [120g x 0.001g] Moisture Analyzer - 250C DryingOur price: $1,729.00
Selecting a Moisture Analyzer
What they Do:
Moisture Analyzers can generally be described as a scale with an oven mounted to it, that can heat a test sample without being involved in the weighing process. These devices are used to measure the moisture content of test samples, or to measure the quantity of high vapor pressure contents that can be driven off at specific temperatures. Moisture Analyzers can be used for materials research as well as production testing of foods or manufactured items.
Specifications: 50g-120g/0.001g – 0.01%; 60g/0.01g – 0.1%
Temperature:
The temperature that the moisture analyzer can operate at is a big factor when working with a variety of samples. Torbal analyzers dry at up to 250 degrees Centigrade. The oven uses two 500 Watt Halogen Bulbs, each operating at ½ their rated voltage. By working at half-mass the bulbs are able to provide a reliable, long lasting life source of 250 Watts of high speed heating for moisture samples. The oven is capable of reaching maximum temperature in a short period of time and can use this capability in a preheat cycle to reduce overall testing time. This feature is available in the professional Series only.

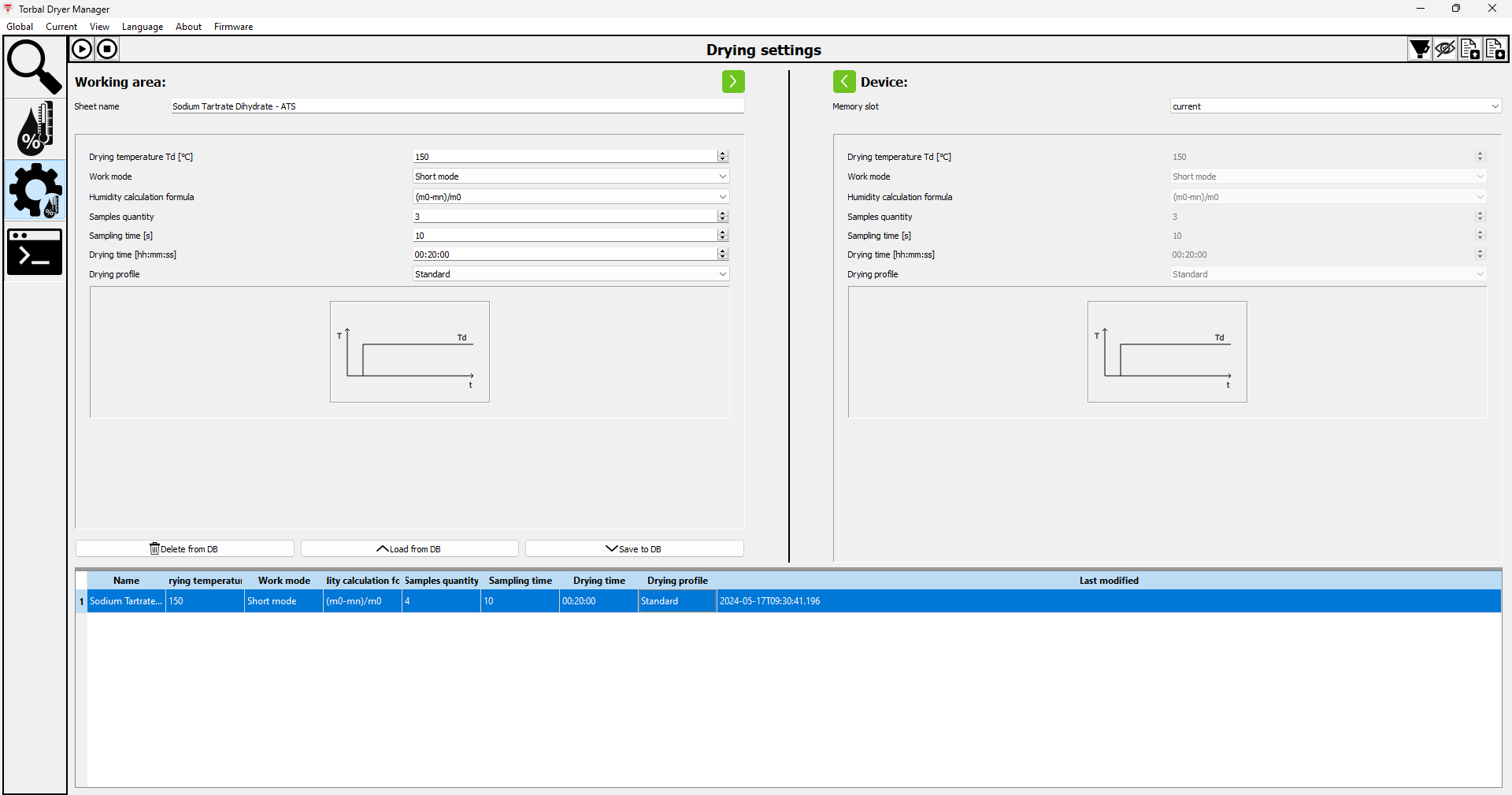

Drying Profiles:
Moisture Analyzers are now being fitted with Multiple Drying Profiles and Analysis Modes. The Drying Profiles that Torbal offers are Standard, Slow, Step, and Rapid. In addition, the user can select one of three Analysis Modes (different equations defining the process). Having custom drying profiles to choose from helps to customize the analyzer to the application being performed.
What else to Look for:
Keypad – Torbal AGS moisture scales and analyzers use a 20-Key Sealed Front panel Keyboard. The keyboard is very advanced with 10 Numerical buttons, which double as Function and Navigation Keys. This simple design makes the analyzer intuitive and allows the user to perform tests in a fraction of the time of other models.

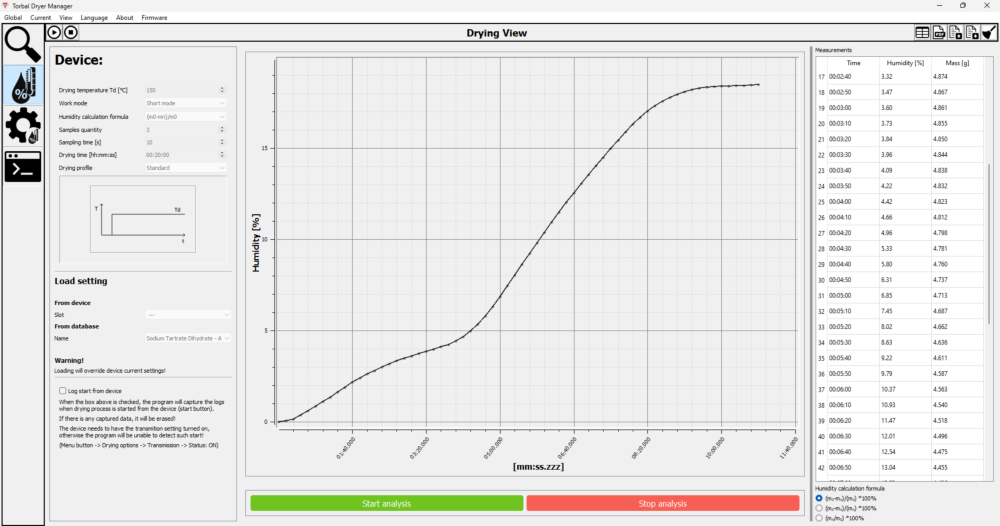

Display – Unlike typical scales, the sample being analyzed is not directly visible to the operator. This problem is resolved by displaying as much information as possible throughout the drying process. Increasingly visual displays allow for easier, more informed testing. Torbal analyzers are equipped with Graphical LCD Displays with onscreen Graph Plotting. All units use a pixel type display that makes the plotting of results on the display screen a reality. The Precision Series additionally allows the display to be viewed in either the normal (positive) mode of black on white, or the negative mode of white on black.

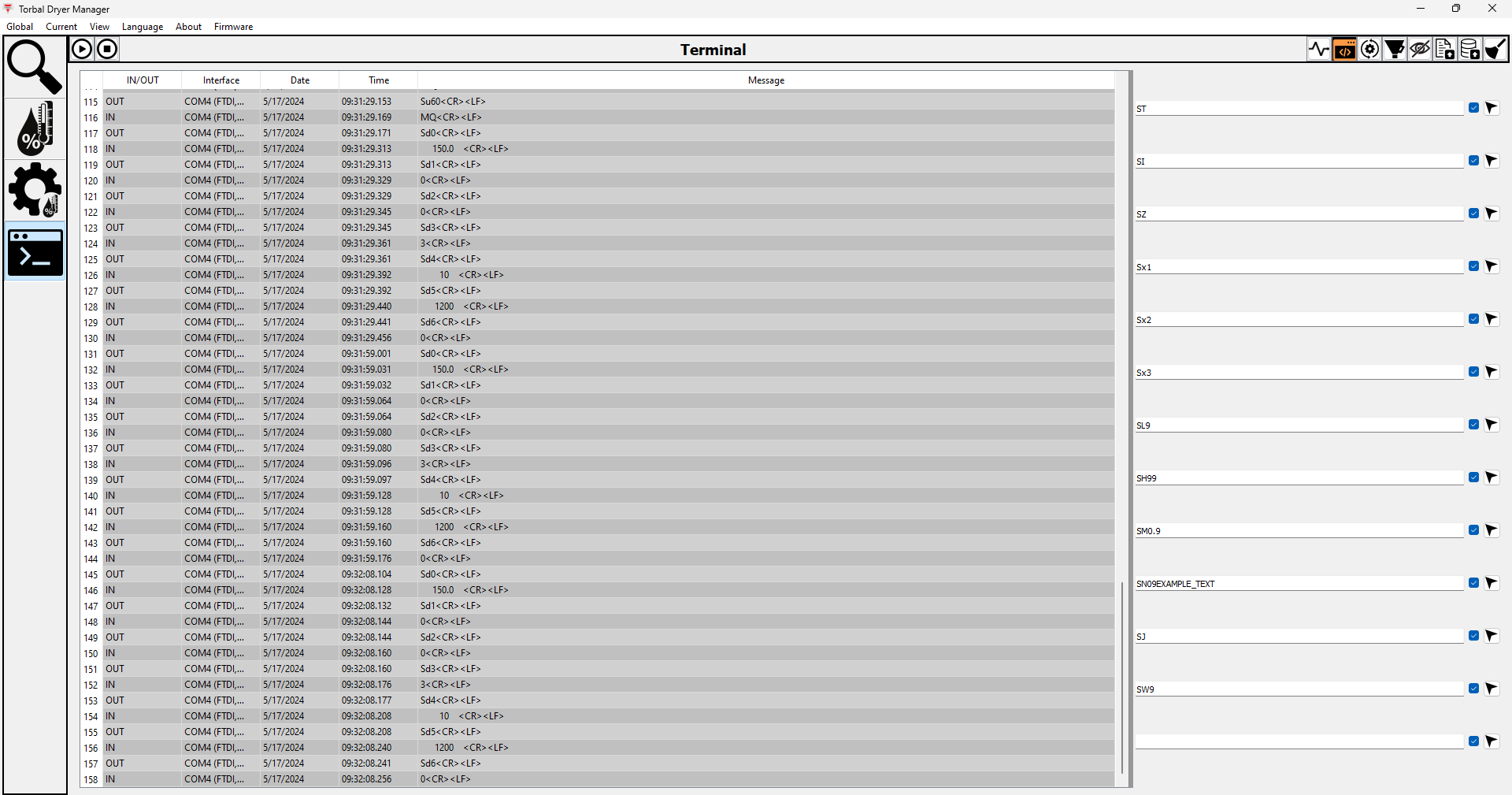

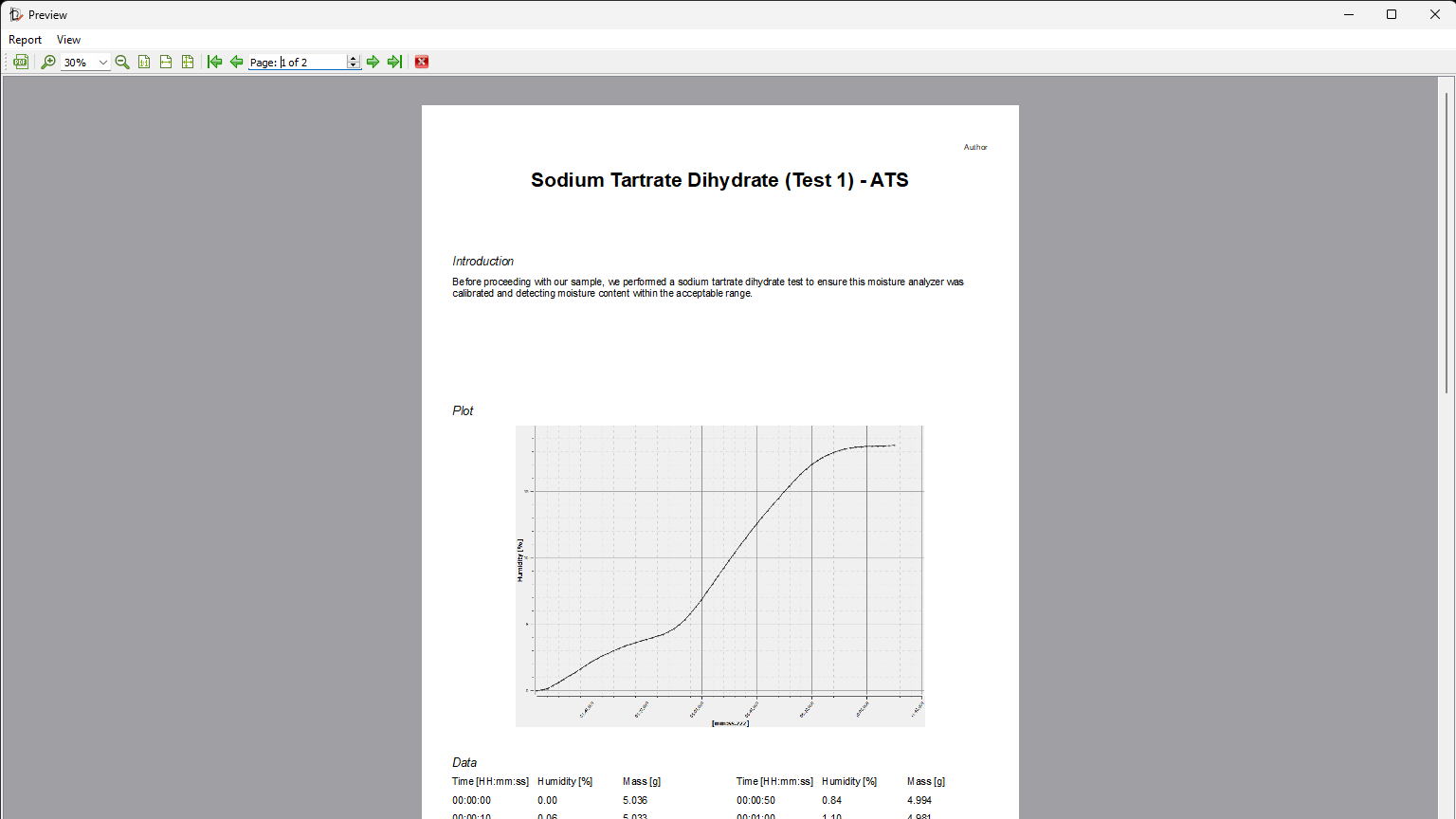

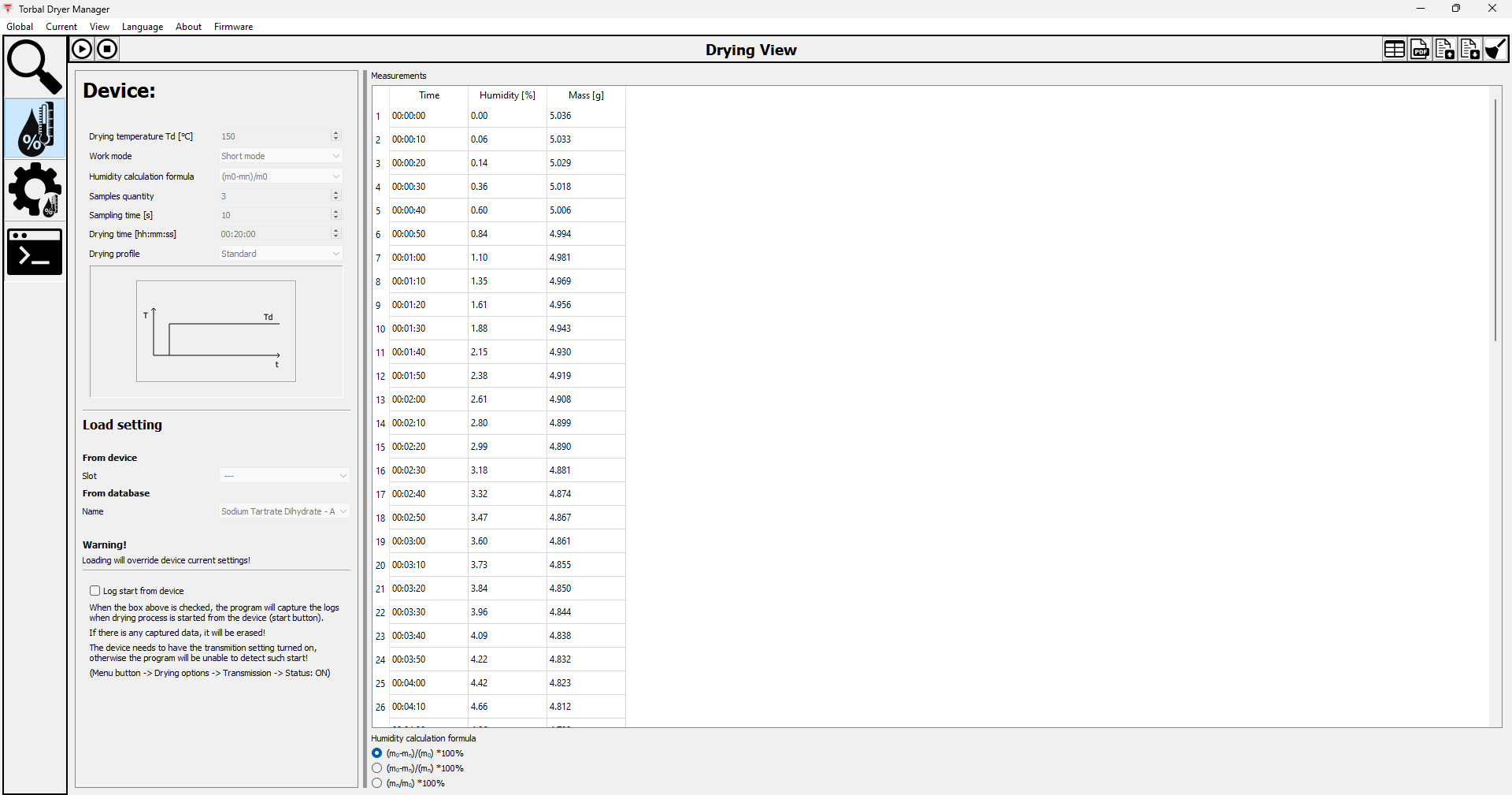

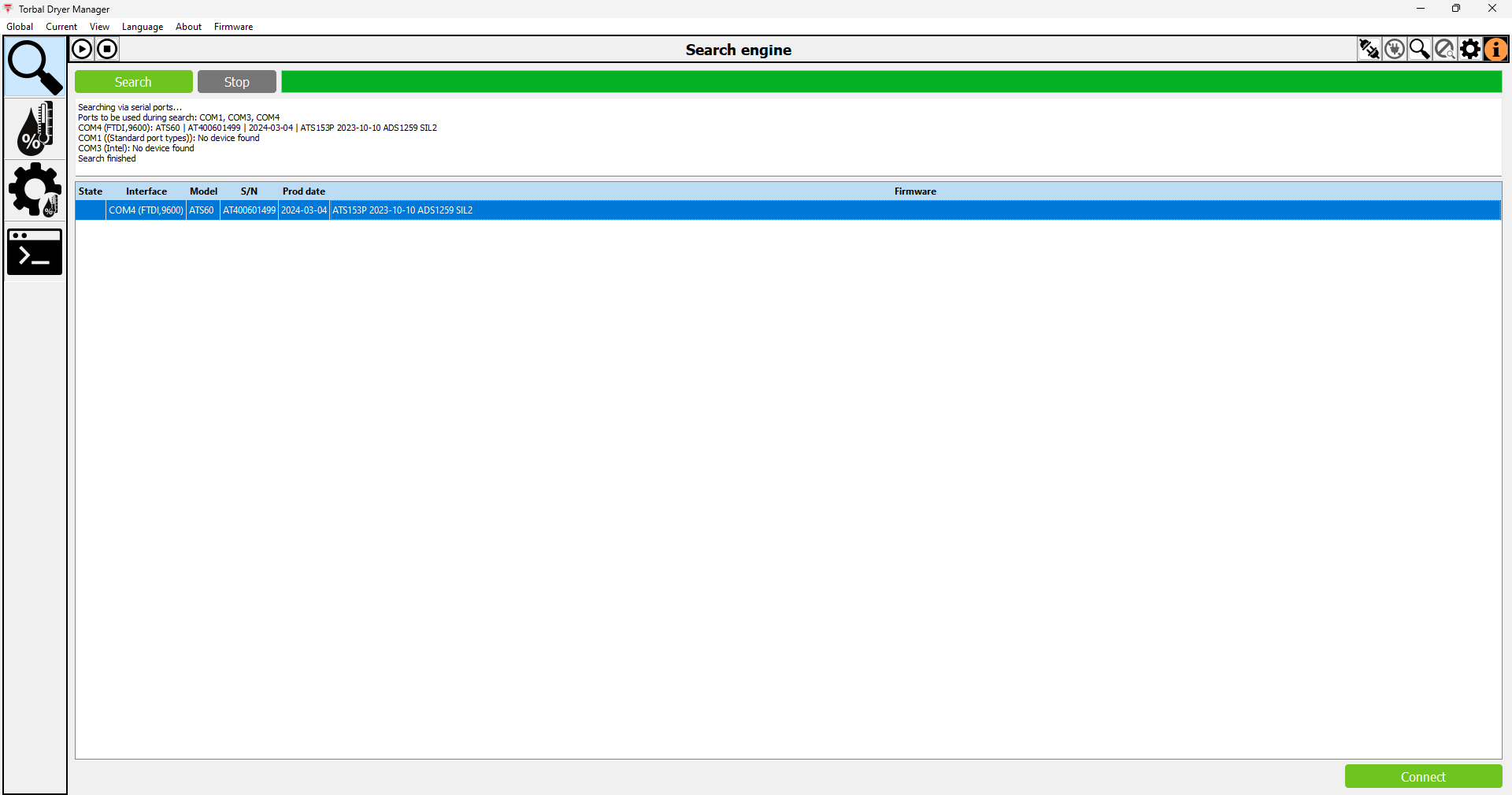

PC Connectivity – Being able to transfer results directly to a computer is especially important for quality control purposes. Many times companies integrate their analyzers with QC software. Having quick and easy access to a computer is essential in these situations. Torbal moisture analyzers come with USB, RS232, and PS2 interfaces.
Conclusion:
Moisture analyzers at first glance have many qualities of a typical laboratory scale, but the truth couldn’t be further off. Moisture analyzers require extremely high temperatures to be performed simultaneously with accurate weighing. Unless a quality analyzer is used, results can vary greatly. In addition a graphical display plays a big role in analyzing results.
